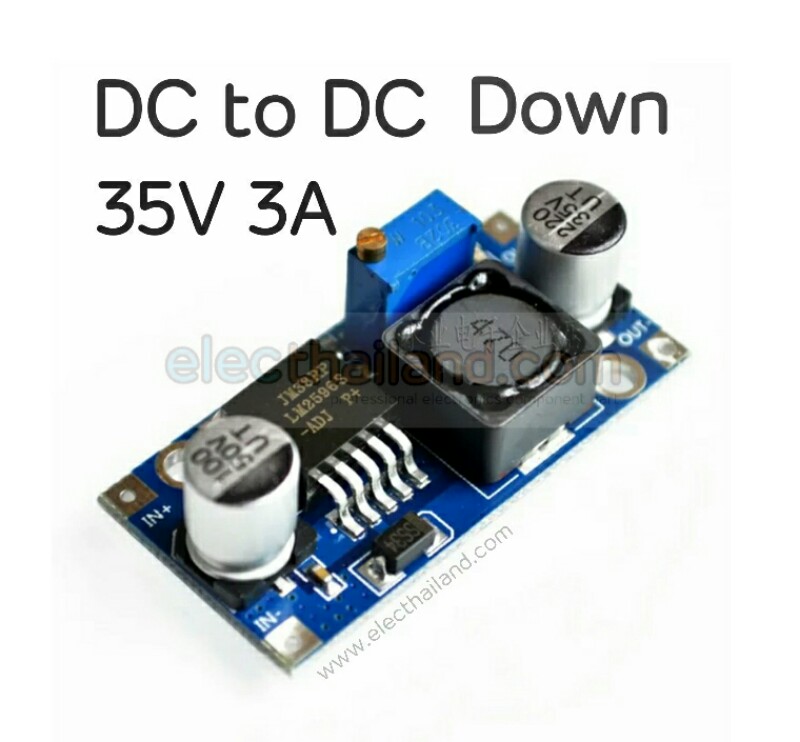

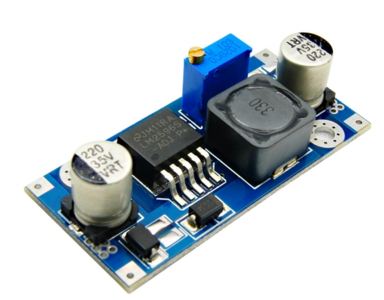

D202: LM2596 X2605 DC Step Down 3A

&#x2606 &#x2606 basic properties

The modular nature of

Non-isolated Buck (BUCK)

Rectification

Non-synchronous rectification

Input voltage

4V-35V

The output voltage

1.23V-30V

Output current

3A (max)

Conversion efficiency

92% (max)

Switching Frequency

150KHz

Output ripple

30mV (最大)

Load Regulation

±0.5%

Voltage Regulation

±2.5%

Operating temperature

-40 ℃ to + 85 ℃

External dimensions

48 * 23 * 14 (L * W * H) (mm)

Features:

&#x2605  block the use of domestic high-quality LM2596 chip, high efficiency (up to 92%) , heat a small, can easily bring up 3A (short) above the current, long working hours is recommended for use in current 2.5A or less at the same time plus cooling piece (10W output above).
&#x2605  This module uses low ESR original filter capacitor, the ripple voltage can make low 30mV, fully comparable and linear power!

&#x2605  This module uses the machine placement, reflow soldering, and each module shipped before After two hours of aging tests to ensure high reliability.

&#x2605 power module audience stock, photographed will be shipped within 24 hours, while this module supports wholesale, Taobao quality and price than the best.
