E180: EGS003 EGP3K Pure sine wave inverter power board

EGS003 EGP3K Pure sine wave inverter power board

Technical Parameters:

Product Name: Modified sine wave inverter pure sine wave stage plate change

Input voltage: DC380V.

Input voltage: AC16V.

Output voltage: AC220V.

Output frequency: 50 / 60Hz "adjustable."

Output waveform: pure sine wave.

Circuit board specifications: 165X100X50MM.

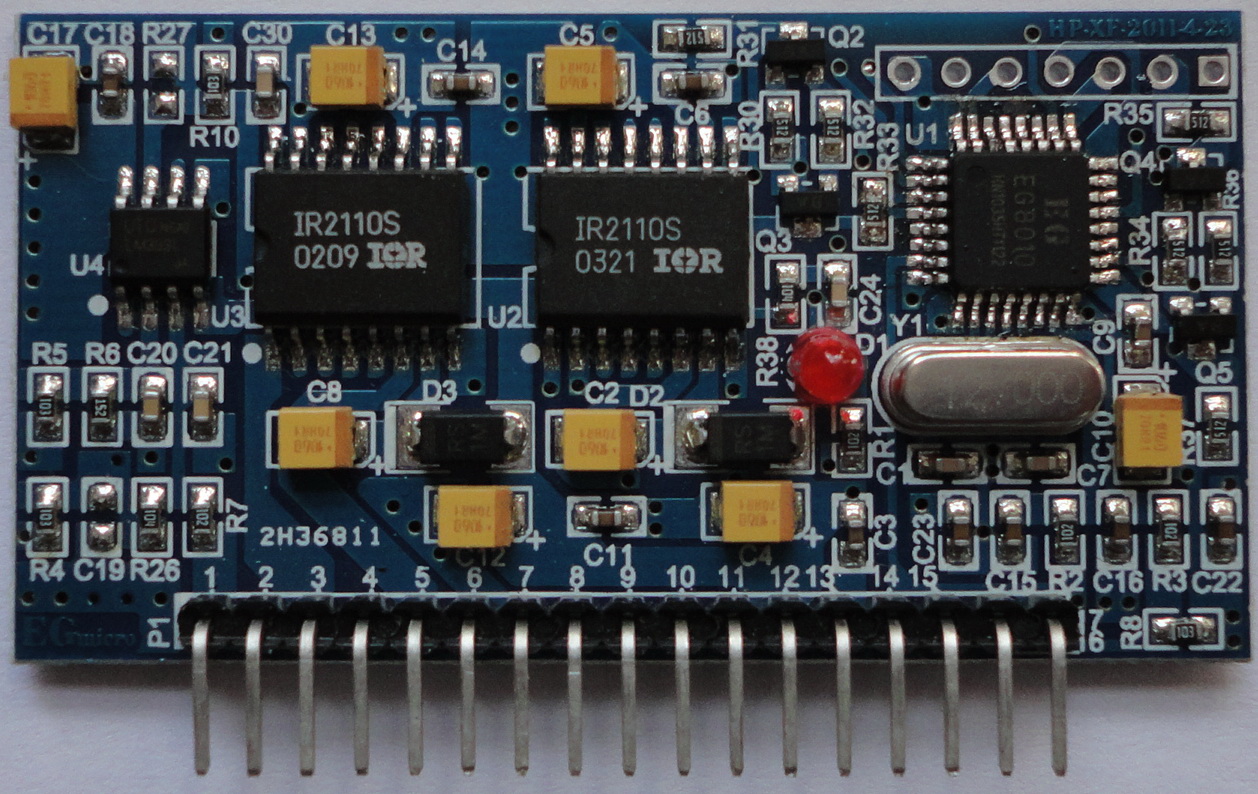

 2, high-frequency mode, EGP1000P power stage board, plug on the part of the picture:

3, the input DC 24V-75V wiring diagram:

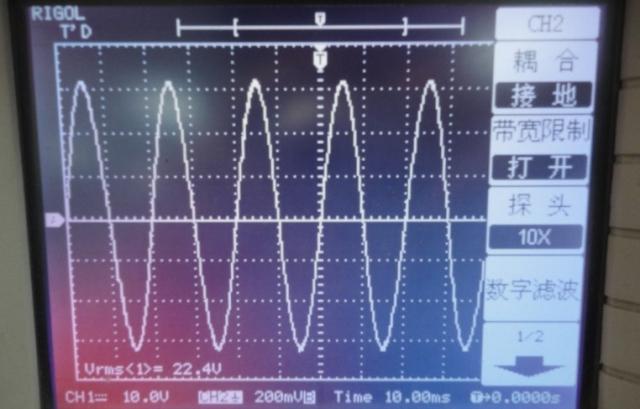

4, 32V DC input 22V pure sine wave AC output oscilloscope test chart:

   EGP1000W Industrial Frequency Mode Example:

        1, power frequency mode, EGP1000W inverter power board mounted on the parts diagram:

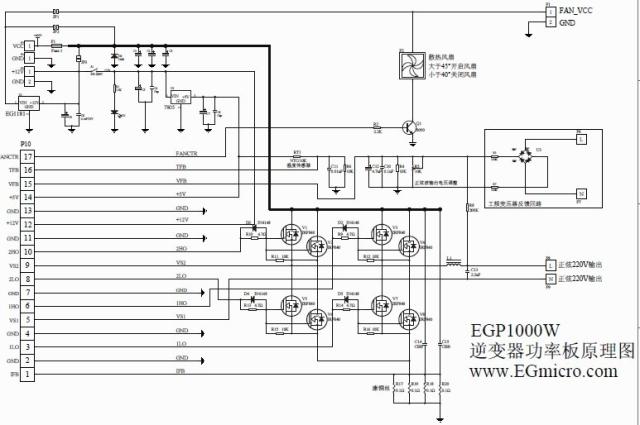

 2, power frequency mode, EGP1000W inverter wiring diagram:

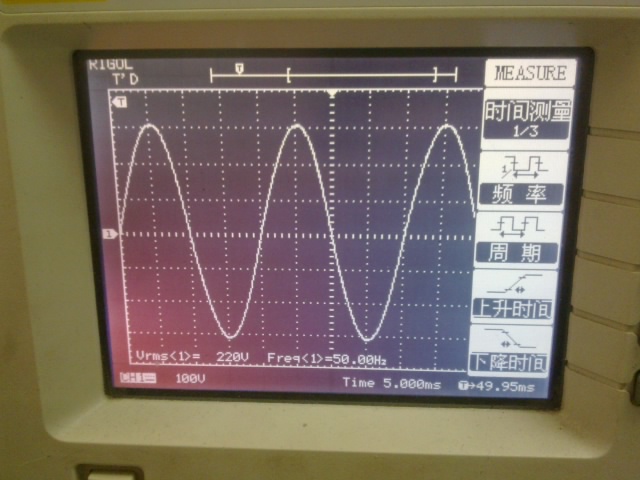

       3, power frequency mode, EGP1000W inverter output sine wave waveform:

     EGP1000W Driver Board (EGS002) for the rear power board:
