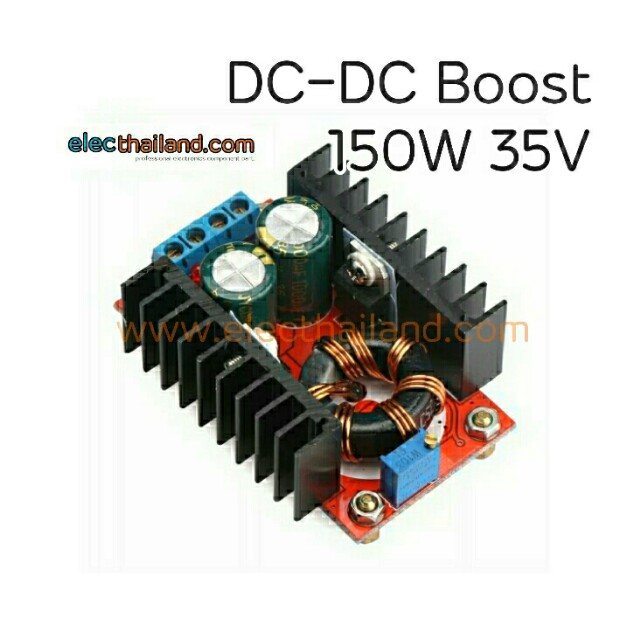

DC-DC Boost 35V 150W

150W step-up module DC-DC notebook mobile power 12-32V transfer 12-35V adjustable

Module parameters

Module nature: Non-isolated boost module

Module size: long 65MM * high 23MM * (width 56.5MM including heat sink)

Input: the IN + input positive level, IN- input negative

Output mode: OUT + output positive level, OUT- output negative

Wiring : solderless terminal

Input voltage: 12 -32 V

Output voltage: ( 1) continuously adjustable ( 12-35V ) Our default shipping voltage 19V

( 2 ) fixed output ( 12-35V arbitrary choice between a)

Output Current: . 6A (the MAX)

Input Current: 10 (the MAX) (more than 10A, please enhance heat dissipation,)

Output power: natural cooling 100W (MAX), plus the fan 150W (MAX)

Easy to drive 65W 90W notebook including dual-core

With a 12V battery with ordinary 19V 3.42A laptop module temperature of about 45 degrees

Conversion efficiency: 94% (input 16V output 19V 2.5A when measured) (for reference only)

Operating temperature: industrial (-40 ℃ to + 85 ℃) (ambient temperature exceeds 40 degrees, please reduce the power to use, or add fan)

Full load temperature rise: 45 ℃

No-load current: Typical 25mA

Short circuit protection : None (Please enter install overcurrent protection device)

Input reverse polarity protection : none, in the input diode in series

Weight: 70G
