AXX:W1209 sensor temperature วงจรตรวจจับอุณหภูมิ

SPECIFICATION
W1209 sensor temperature วงจรตรวจจับอุณหภูมิ

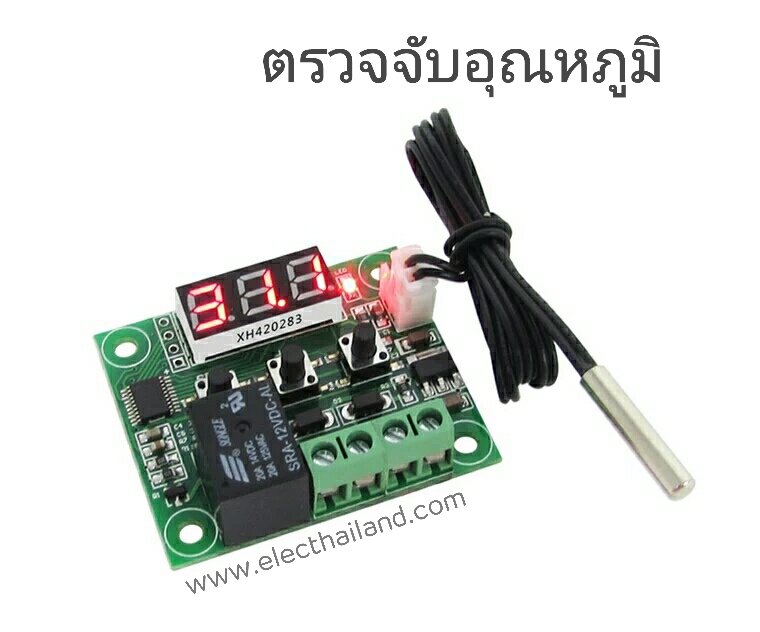

W1209 DC 12V Heat Cool thermostat temperature Control Switch Temperature Controller Module -50-110 Celsius Degree

Specifications:

Temperature range :-50-110C

Dimensions: 48.5 * 40.1 * 15.8mm

Temperature control mode: ON / OFF

Resolution:When temperature is 0.1C, the resolution

is -9.9~99.9, other temperature segment is 1C

Control accuracy: 0.1C

Hysteresis accuracy: 0.1C

Refresh rate: 0.5S

High temperature protection:0-110C

Supply voltage: DC 12V

Static current:

Output voltage: DC 12V

Output power: 10A relay

Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmental requirements: -10 ~ 60 C,Humidity 20%

-85%

How to use:

Connect the power supply and the load, you can supply

to the controller,

Is displayed as a measured temperature,

Press the SET button, the display flashes the

temperature,

Press - to set the desired temperature,

After setting press SET to confirm return,

The controller automatically performs the relay by

setting off!

Lights, LED status descriptions:

Indicator: Off The relay is switched off, Always

indicate the relay is closed.

LED: Shows LL is the sensor open, showing ?HH is out

of range, the thermostat will be forced to close the

relay, the display --- as high temperature

protection.

Package Included:

1 x -50-110 C W1209 Digital thermostat Temperature
