รหัสสินค้า | SKU-00085 |
หมวดหมู่ | PSU/DC-DC/เครื่องชาร์จ |
ราคา | 250.00 บาท |
สถานะสินค้า | พร้อมส่ง |
ลงสินค้า | 5 ก.ย. 2559 |
อัพเดทล่าสุด | 7 พ.ค. 2561 |
คงเหลือ | 18 ชิ้น |
จำนวน | ชิ้น |
Module Parameters:

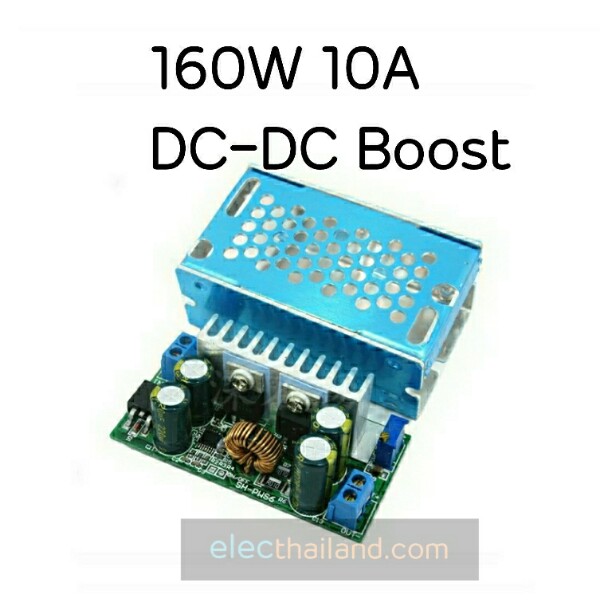

Module Name: 160W adjustable boost module
Type: Non-isolated step-up module (BOOST)

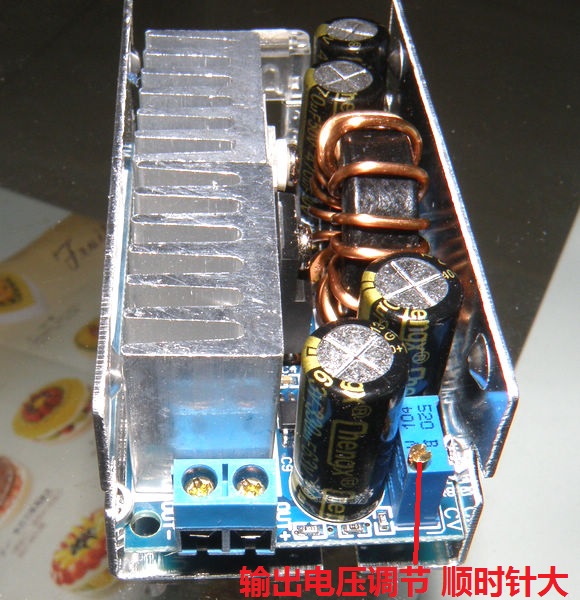

Input voltage: 8-40V two selectable input voltage range (short contacts through the back of the PCB Option 1, 9-16V input for three strings and 12V lithium battery applications) 2,10-40V input (12V for batteries and other applications over a wide input voltage range) output voltage: 12-60V continuously adjustable (fixed output for the default output random please photographed instructions)
input current: 20A (MAX)
quiescent current: 16mA (12V when liter 19V, output voltage higher Shizuta current will increase, lower quiescent current for the power indicator to cancel)
output current: Max 10A (MAX) current size and pressure, temperature has an associated
output power: natural cooling power of up to 90W to enhance heat dissipation 160W
Operating temperature: -40 to +85 degrees
working frequency: 150KHz
conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: 20A fuse (short circuit risk, please try not to short-circuit)
input transient pulse reverse voltage protection: None (PCB board has set aside there is a need to install their own diode)
wiring Information: high current terminals, solderless, IN + IN- input of positive and negative, OUT + OUT- output positive and negative

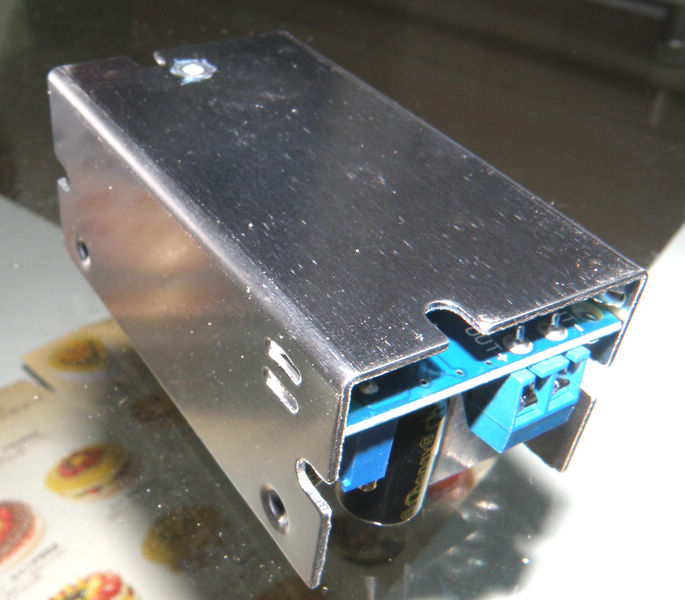

aluminum housing size: 70MM * 39MM * 31MM

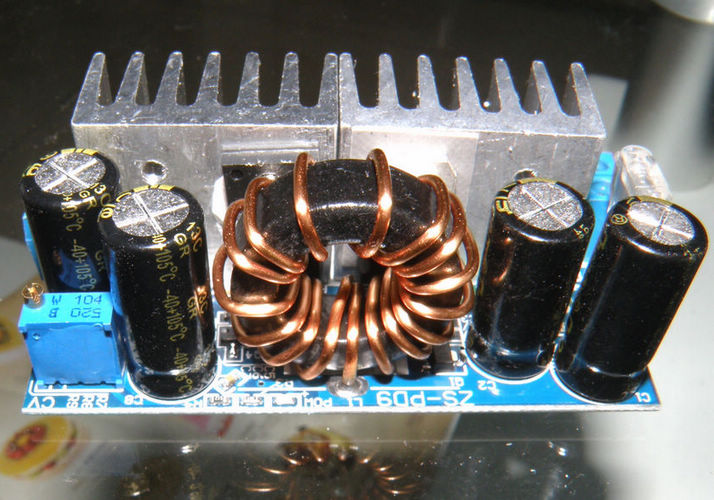

top material with high permeability and low loss rate of energy storage Kool relatively high saturation magnetic enter two 470uF / 50V, output two 330uF / 60V switching power supply for high-frequency low-impedance capacitor, so that a lower output ripple, output with LED work instructions, intuitive work.

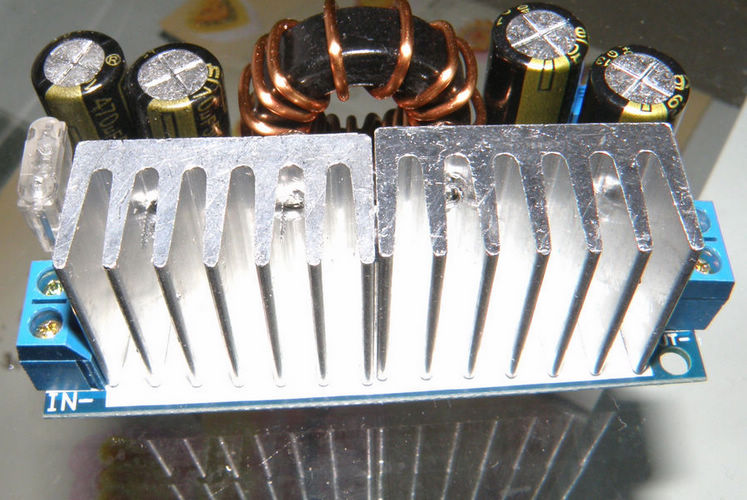

With thick aluminum encryption type better heat dissipation, lower module temperature. Perfect compact PCB layout, the use of dedicated automotive fuse to protect the large current use of more stable.
(*ลูกค้าต้องจำหมายเลขตอนสั่งซื้อให้ได้นะค่ะ*)
